Z beam for slotted angle storage shelf rolling forming machine for sale in discount

ZTRFM

Z-Beam shelving systemwhich has theperfect combination of low-profile and long-span solutions. Zhongtuo Z-Beam rolling forming machine is designed to make the Z beam in batch fully automatically.

Z-Beam Shelves offer companies the best solution for maximizing space in the backroom or front office. Here are some reasons to consider using this model:

Reaches up to six-feet in width

Each shelf can hold 2,400 pounds

Reduction in beam profile increase clearance

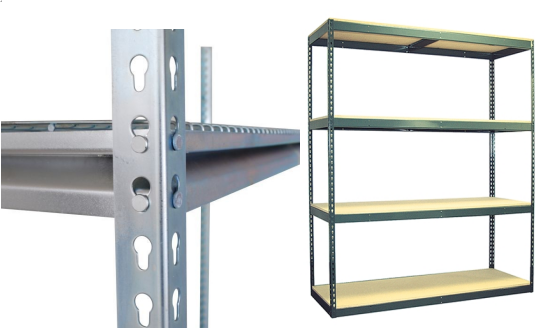

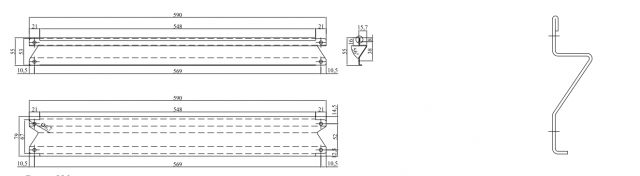

Drawing profile for your reference of Z beam:

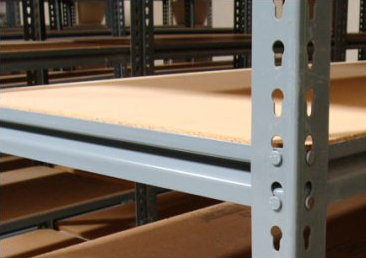

Zhongtuo Z beam for slotted angle storage shelf rolling forming machine pictures:

Main Roll forming machine

Voltage: 380V 50Hz 3 phase (according to customer requirements)

Roller material: GCr12 with quenching

Shaft material: 45# steel after quenching

1. Number of molding passes : 16 Roller stations

2. Forming machine form: arch-type gear box transmission, frame steel plate welding, gantry milling after stress removal to ensure the benchmark accuracy of the equipment.

3. Shaft diameter; ¢70mm

4. The main motor is 18.5KW.

5. Line speed: 30 meters per minute.

6. Roll material: Gr12 quenching

Cutting knife

Blade material: GCr12MoV quenching

Power supply: hydraulic power

1. Cutting method: servo tracking, forming hydraulic mold cutting.

2. Control mode: The whole machine adopts PLC control.

3. Cut the length of the scale: ± 1mm.

4. Cutting plate thickness; 1.1mm-1.5mm.

5. Hydraulic station motor: 5.5kw.

6. Tracking cutting speed: ≥40m/min.

7. Linear guide: high-precision Taiwan silver brand.

8. Ball screw: High-precision Taiwan silver brand.

9. Cutting length: ≥ 452mm adjustable.

10. Drag motor power: 5.5kw servo

Z beam is easy for Vertical Clear Open

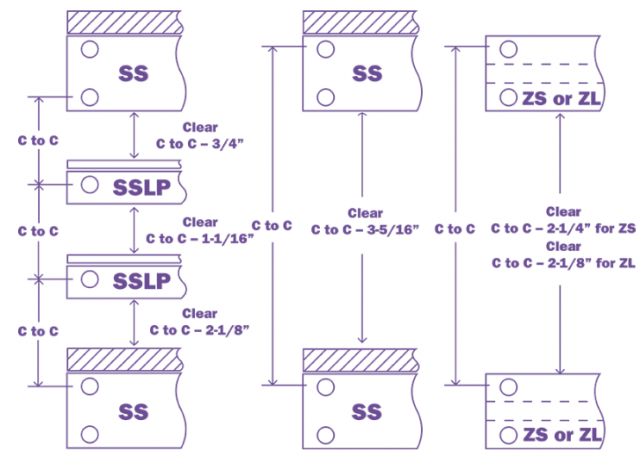

The profile of the shelf beam will affect the clear opening between shelf levels.

How to do the installation of Z beam:
