2022年7月11日

Description of Widespan Roof Sheetign Roll Forming Machine

Wide span Roof Sheeting Roll Forming Machine is designed to produce widespan roofing sheets. Which is widely used in South African. Here are some drawing profile for your reference:

Profile Details of Widespan Roof Sheetign Roll Forming Machine

TRS 6 is one of the classic wide span, bold rib trapezoidal profile used commercially and for residential buildings. And the material could be roofing and cladding. G550 grade steel with minimum 0.40mm BMT and maximum 0.55 BMT gives more resilience to damage.

Application of Widespan Roof Sheetign Roll Forming Machine

Wide span roofing sheet is ideal for use on new homes, and existing buildings as roofing and wall cladding system. End Span 0.40/0.55 BMT: 1100 mm/1300 mm and internal Span 0.40/0.55 BMT: 1450mm/2000 mm

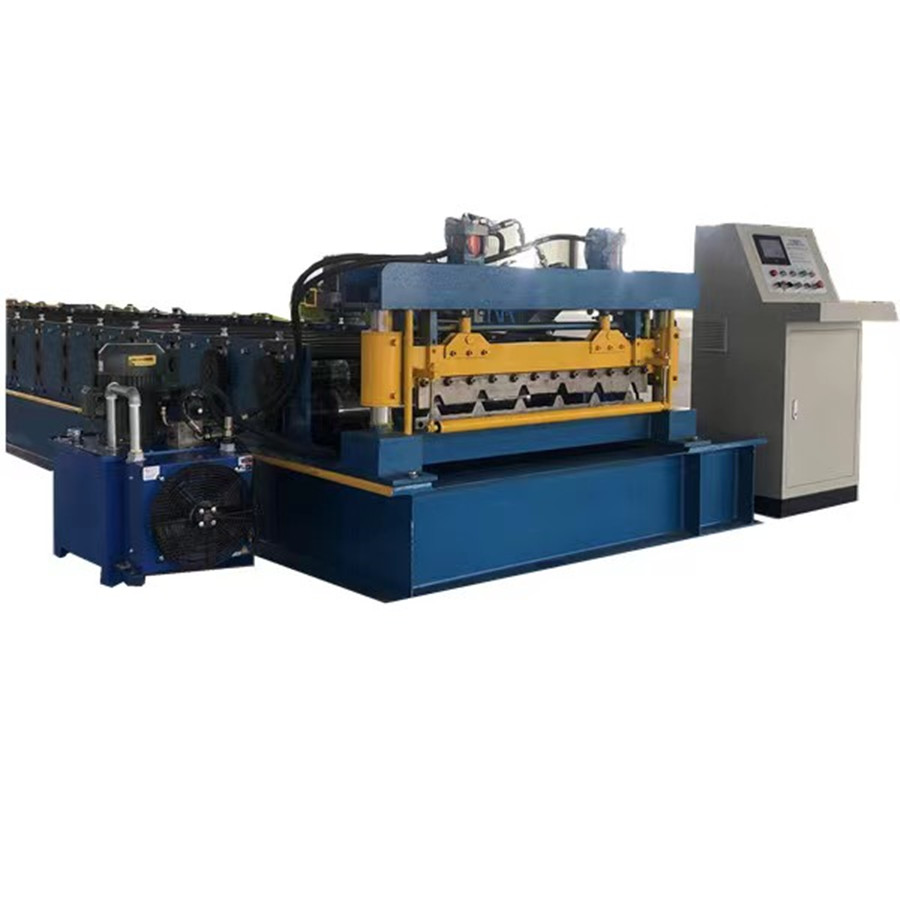

Wide span Roof Sheeting Roll Forming Machine:

What’s Widespan different with the normal IBR type?

Widespan is a box profile which is similar to IBR Roofing Sheeting. Using the same input width coil, it have a better cover width than a IBR roofing sheet. It is more economical alternative than IBR Roofing Sheeting.Widespan roof sheeting has various applications from industrial and residential roof covering ti side cladding for factories and warehouses. Widespan is also popular solution carports and sheets due to its economical and aesthetic properties.The coils for Widespan Roofing sheet are Galvanized, Zinc, PPGI, etc. The thickness is from 0.2-0.8 and full hard material.

Layout of Widepan Roof Sheeting Roll Forming Machine

Uncoiling–Feeding and Guiding–Roll Forming-Cutting Off–Collecting

Roll Forming Machine of widespan for your reference:

Adopt H Beam and Steel Plate Welded, the wall plate thickness is 25mm.
Coil width: 914-925mm
Forming Stands: 18
Roller Material: ASTM 1045, quenched and chromed 0.05mm thickness
Shaft Material: ASTM 1045, quenched, solid round steel, diameter is 80mm
Main Motor Power: 7.5KW
Power Transition: Chain and Gear
Roll Forming Speed: 15m / min
The machine will cover safety net.
The main part of widespan roof sheeting roll forming machine, quality design

Hydraulic Cut off Device

Material Of Cutting Mold: Cr12 Steel With Quenched Treatment HRC 60-62
Cutting Length And Quantity: Workers Can Set The Length and Quantity on the PLC Touch Screen
Hydraulic Station Power: 5.5 KW
Tolerance Of Cutting Length: +/-2mm

And if you need more information, please contact us at any time.

by zhongtuocn

2022年5月12日

Anti-aging Trapezoidal (IBR) Roofing Sheet Roll Forming Machine

Description:

The good-priced new roofing sheet machine is your best choice with multi-function, and it is a good helper for heat and sound insulation For more details, please click here now.

The 2022 New Anti-aging Trapezoidal (IBR) Roofing Sheet Machine can easily produce the metal roofing sheets in a high speed with Inverted Box Ribs. Like other metal sheet roll former, this Machine is capable to run both automatically and manually. And more importantly, it is versatile, not only can produce normal PPGI and color steel material, but also can be used for composite material, so it is a good helper for heat and sound insulation.

The IBR roofing sheet machine and corrugated roofing sheet machine occupy the top ten in color steel tile sales in African steel building industry. Here is one drawing profile for your reference:

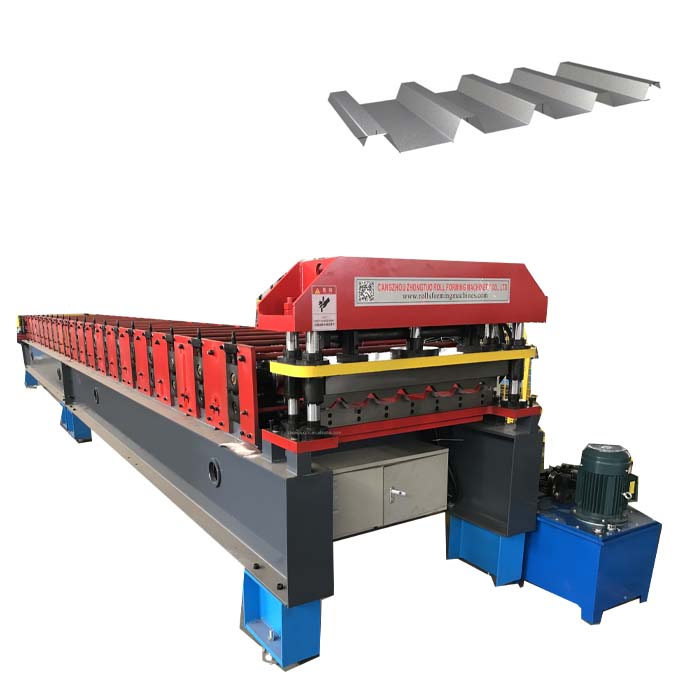

Anti-aging Trapezoidal (IBR) Roofing Sheet Roll Forming Machine

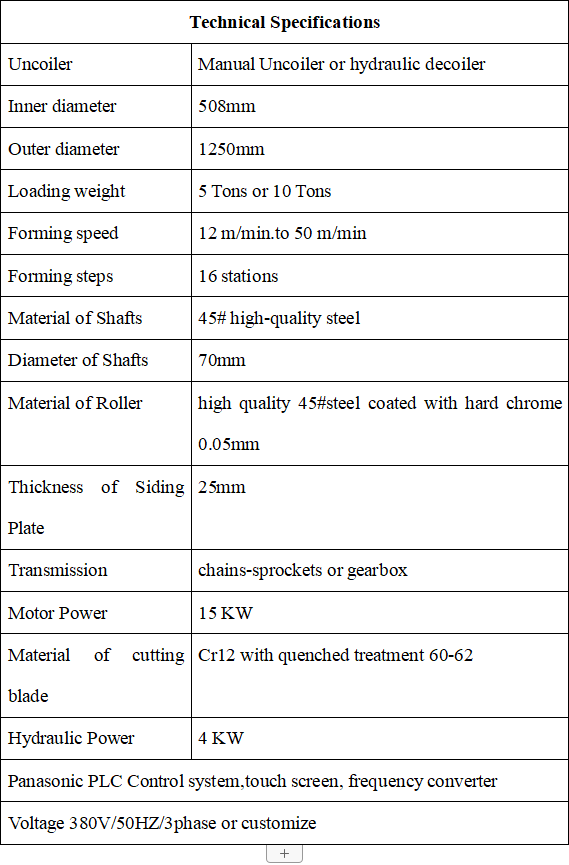

Technical Specifications:

Advantages:

Forthe gear, it is important for the machine that we use Chinese famous brand HRB
Forthe leveling part, we will use two layer and handrail
Forthe roller, we use the carefully polished one to make sure it will not damage the surface of raw

The main parts of the Anti-aging Trapezoidal (IBR) Roofing Sheet Roll Forming Machine:

ManualUncoiler;
FeedingGuider;
Rollforming machine;
HydraulicCutting system;
PLCControl System;
RunoutTable

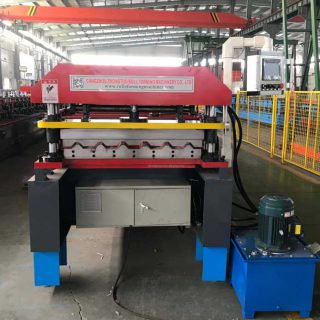

For the Anti-aging Trapezoidal (IBR) Roofing Sheet Roll Forming Machine above is about the slow speed like 25 meter per minute. We also have another options like 45 meter per minute, here is the machine pictures for your reference:

Anti-aging Trapezoidal (IBR) Roofing Sheet Roll Forming Machine

Trapezoidal (IBR) Roofing Sheet Roll Forming Machine - ZTRFM

WIDESPAN ROOF SHEETING ROLL FORMING MACHINE

Description of Widespan Roof Sheetign Roll Forming Machine

Wide span Roof Sheeting Roll Forming Machine is designed to produce widespan roofing sheets. Which is widely used in South African. Here are some drawing profile for your reference:

Profile Details of Widespan Roof Sheetign Roll Forming Machine

TRS 6 is one of the classic wide span, bold rib trapezoidal profile used commercially and for residential buildings. And the material could be roofing and cladding. G550 grade steel with minimum 0.40mm BMT and maximum 0.55 BMT gives more resilience to damage.

Application of Widespan Roof Sheetign Roll Forming Machine

Wide span roofing sheet is ideal for use on new homes, and existing buildings as roofing and wall cladding system. End Span 0.40/0.55 BMT: 1100 mm/1300 mm and internal Span 0.40/0.55 BMT: 1450mm/2000 mm

Wide span Roof Sheeting Roll Forming Machine:

What’s Widespan different with the normal IBR type?

Layout of Widepan Roof Sheeting Roll Forming Machine

Uncoiling–Feeding and Guiding–Roll Forming-Cutting Off–Collecting

Roll Forming Machine of widespan for your reference:

Adopt H Beam and Steel Plate Welded, the wall plate thickness is 25mm.

Coil width: 914-925mm

Forming Stands: 18

Roller Material: ASTM 1045, quenched and chromed 0.05mm thickness

Shaft Material: ASTM 1045, quenched, solid round steel, diameter is 80mm

Main Motor Power: 7.5KW

Power Transition: Chain and Gear

Roll Forming Speed: 15m / min

The machine will cover safety net.

The main part of widespan roof sheeting roll forming machine, quality design

Hydraulic Cut off Device

Material Of Cutting Mold: Cr12 Steel With Quenched Treatment HRC 60-62

Cutting Length And Quantity: Workers Can Set The Length and Quantity on the PLC Touch Screen

Hydraulic Station Power: 5.5 KW

Tolerance Of Cutting Length: +/-2mm

And if you need more information, please contact us at any time.
