The sandwich panel roll forming machine is widely used to produce the wall and roof sandwich panels. The final products can be applied to pre-fabricated houses, modular houses, refrigeration rooms, etc. ZhongTuo Machinery can offer you different kinds of machines as your requirements. And we also provide services for you to make sure that the machine is safe to operate via video link by our skillful technicians. If permitte, we even can send our technicians to your factory to guide the installation on site. So if you sre interested in our machines, just click here to contact us at any time.

Here is a video of the sandwich panel roll forming machine for your reference:

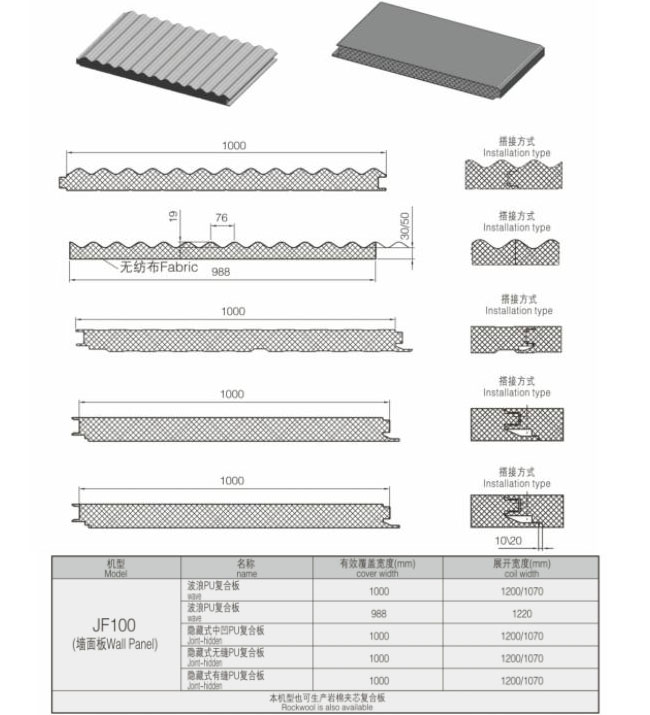

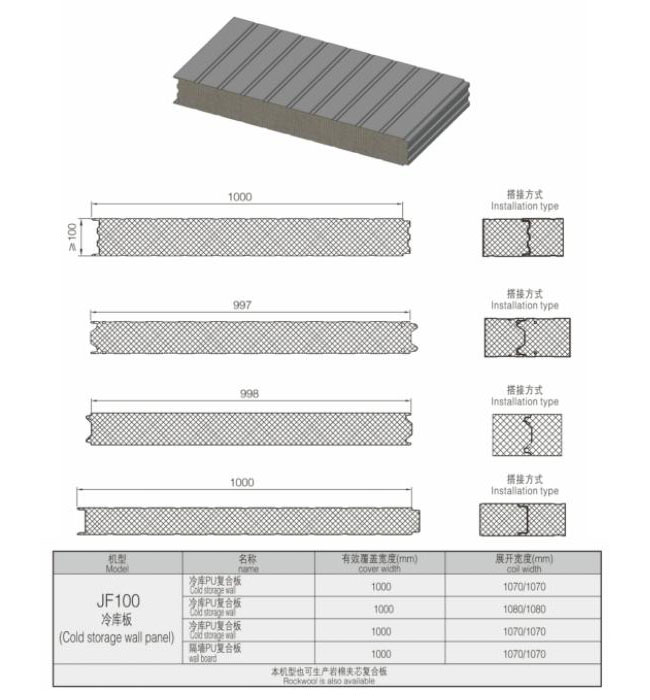

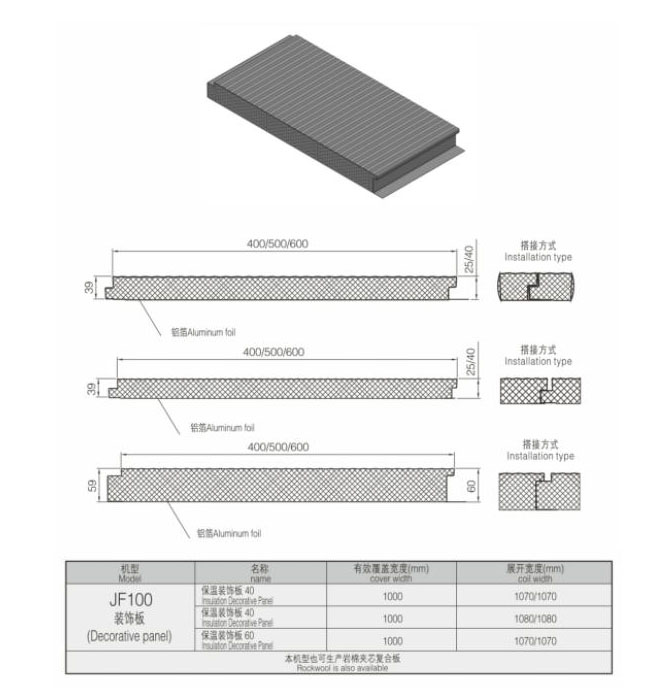

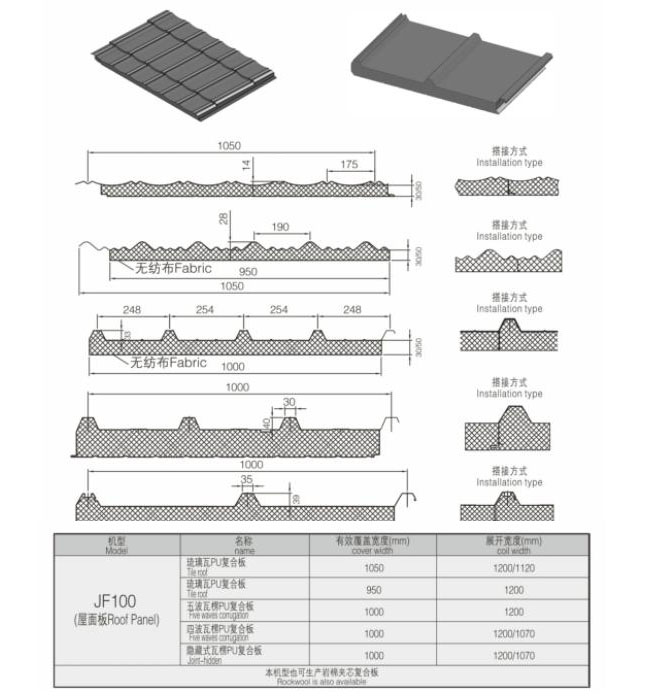

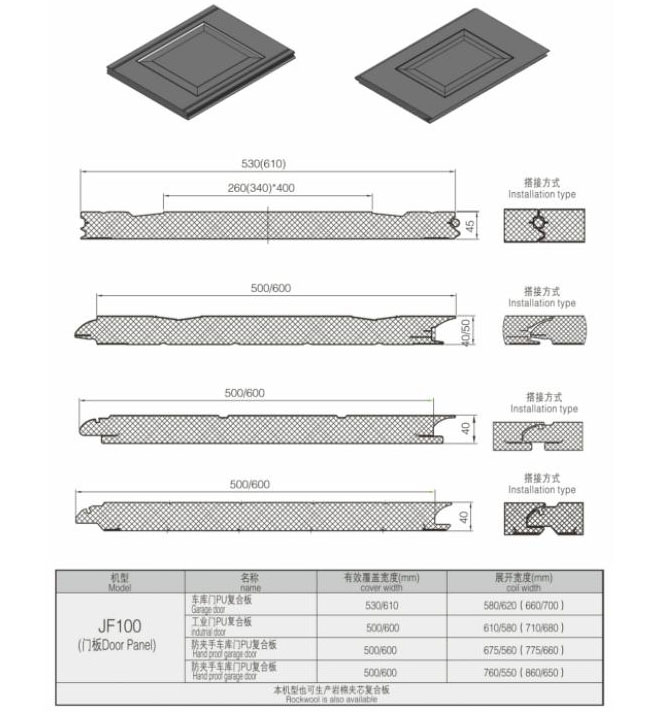

Here are some drawing profiles of final products that our machine can manufacture for your reference:

As you can see, the machine made from our company can produce several types of sandwich panels. These kind of sandwich panels are composite, which means that the core of panels is filled up with insulation materials, such as polyurethane foam or rock wool. They are universely used in the building industry. In addition, ZhongTuo Machinery has ability to produce panels in all shapes and sizes. We choose the highest-quality raw materials to make sure the final product and our machine enjoy long-term life.

Here let me introduce some main components of the roll forming machine:

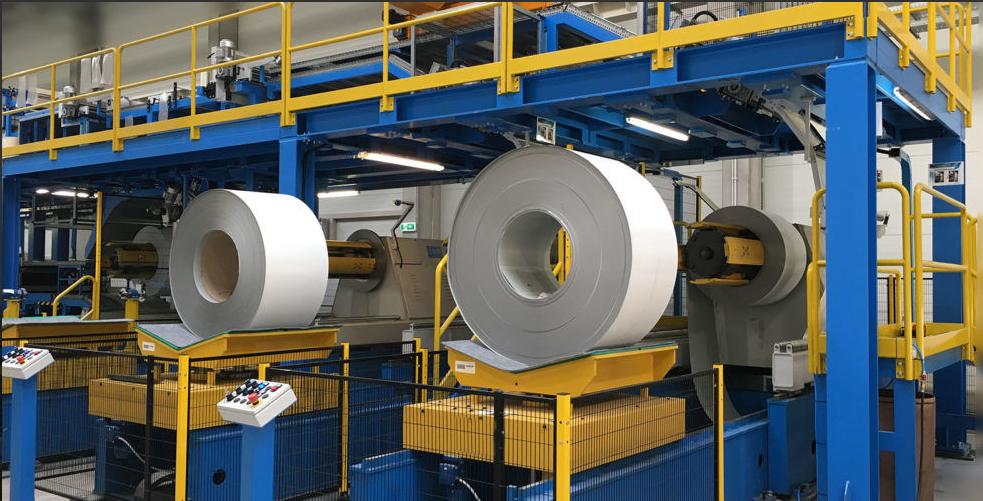

Decoilers: The machine is equipped with 2 or 4 decoilers. These decoilers are responsible for input of the steels, sending steels from the upper to the lower parts. The decoilers for continuous plants are made with a 4-segment structure, with a motor that can work in tension or in a loop and with a hydraulic loading cradle that does not need floor foundations.

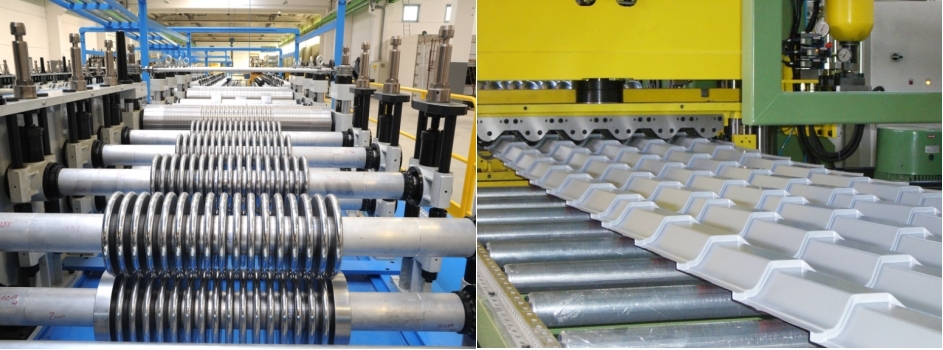

Roll forming machines: The roll forming part is used to shape the metal and produce the desired sandwich panels. This part has been equipped with a cassette changing system for the purpose of replacing the profile during the manufuacturing in a quick and easy way. We also manage double rotating profiling machines.

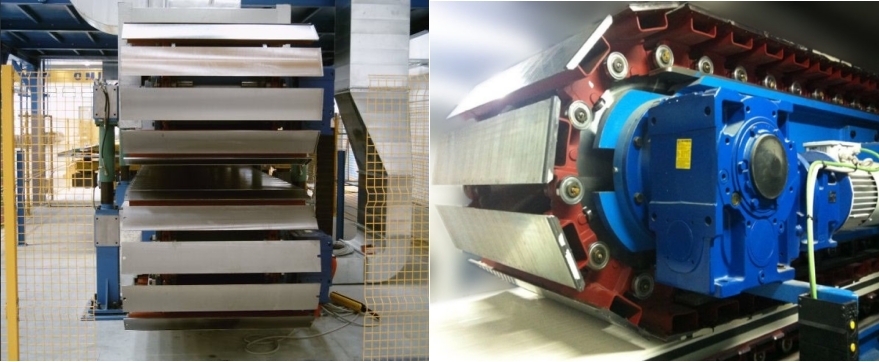

Double belt: The double belt is the major part of the machine. This part connects upper parts and lower parts of panels. It is made from stainless steel plaes and it features extreme precesion and high accuracy.

If you want to learn more about the machine or other kinds of machines that ZhongTuo Machinery manufacture, please contact us right away! We are sincerely waiting for you.
