Snap-Lock Standing Seam roofing sheet rolling forming machine - ZTRFM

Snap lock standing seam is created by “snapping” on side of a metal roofing panel onto another so that they hook together and are fastened to the roof by a nailing flange then hidden by the next sheet, no special tools needed for installation. As the demand of the market, we have developed the Snap-Lock Standing Seam roofing sheet making machine.

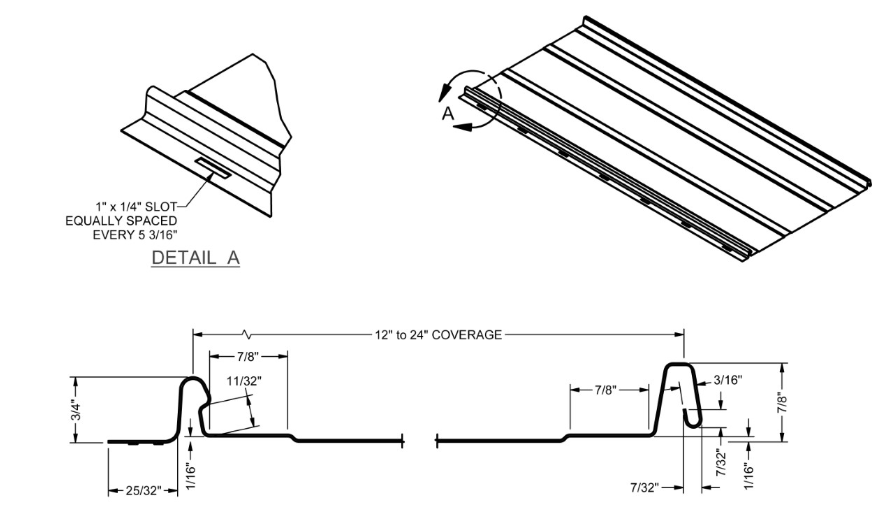

Take the following Snap-Lock Standing Seam roofing sheet drawing profile for examples:

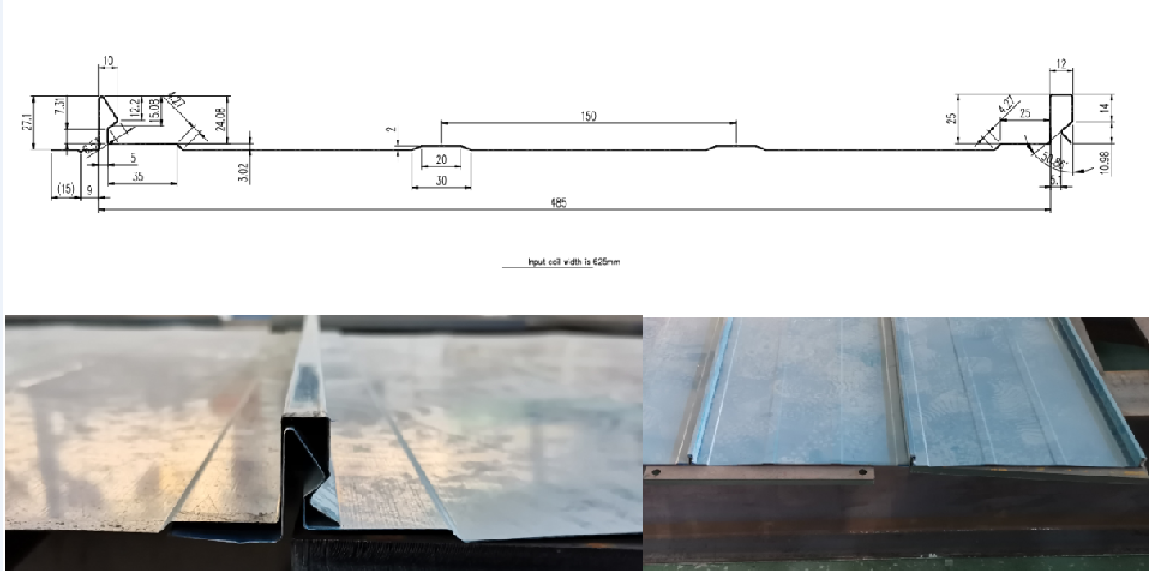

Popular design 1:

 Popular design 2:

Product sheet Raw material GI&PPGI&G550
Material thickness 0.3-0.8 mm
Feeding width 1220mm
Effective width 930 mm
Sheet cutting length Adjustable
 Main roll former
Roll forming machine Feeding device One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels.
Rolling shaft

Roller

 Shaft material:45# STEEL
Shaft diameter: 75 mm
Tempering treatment to prevent deformed and improve hardness.
45# steel   45 # сталь
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station 20 rolling stations
Work speed 20 m/min
Machine structure Steel plate welded structure
Machine basic frame 350# H steel welded
Work power 7.5 kw
Rolling spacer Anti rusty treatment
Pull rod Anti rusty treatment
Transmission By Chains with cover
Noted: please fill the lube in case the chains getting dry.

Snap-Lock Standing Seam roofing sheet making machine design:

More details of the Snap-Lock Standing Seam roofing sheet rolling forming machine:

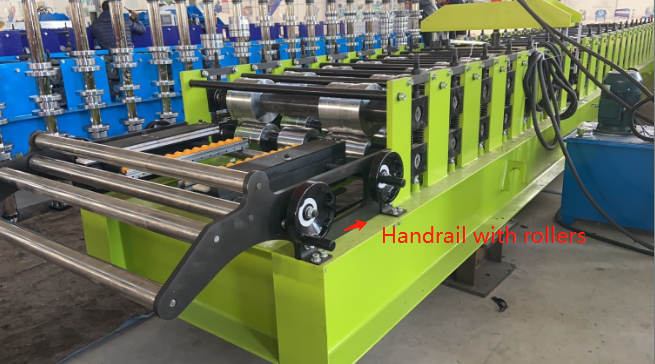

  1. High quality leveling beach with rollers for protecting the surface of the coil.

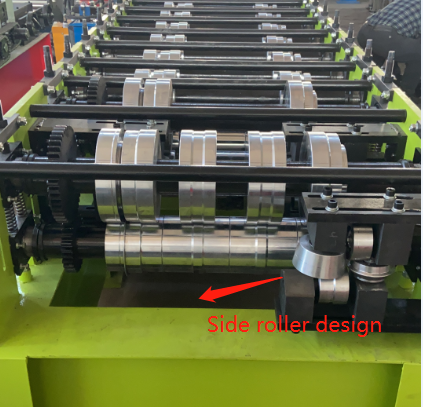

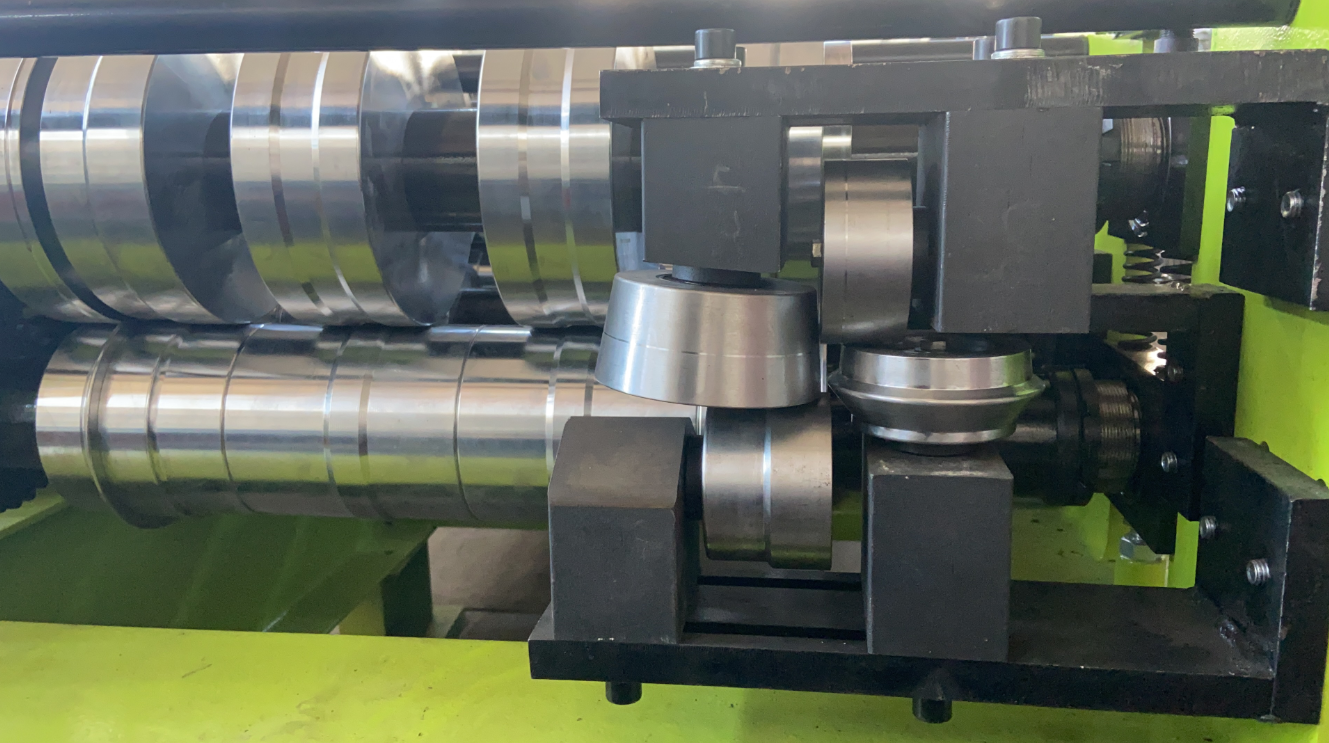

2.The side roller design:

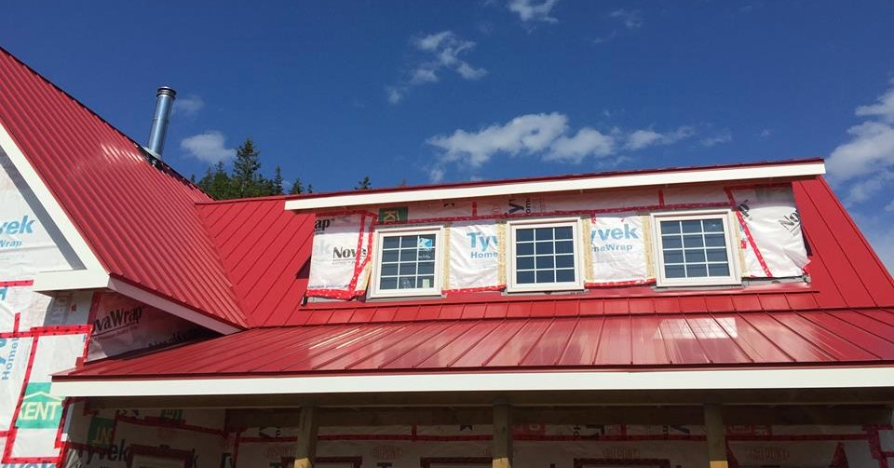

Snap-Lock Standing Seam roofing sheet Usage in daily life:

Snap-Lock Standing Seam roofing sheet rolling forming machine working videos for your reference:
