What is the Dovetail Deck?
Dovetail Deck System uses the intrinsic strength and aesthetic appeal of the dovetail shape to provide the architectural and structural design communities with a variety of floor and roof deck design solutions.
The FormLok Dovetail Composite Floor Deck is one of our most versatile and practical products. You can achieve long spans with shallower floor depths that enable you to fit more into multi-story buildings.
Along with its aesthetic design, our dovetail roof deck provides excellent load capability. The acoustical roof decks use proven sound-reducing technology to help lower level of ambient background noise.
According to Zhongtuo cold rolling forming machine experience, here we list some popular design in USA for your reference:
This the ACOUSTICAL design with the filling, it can remove the sound in some degree.

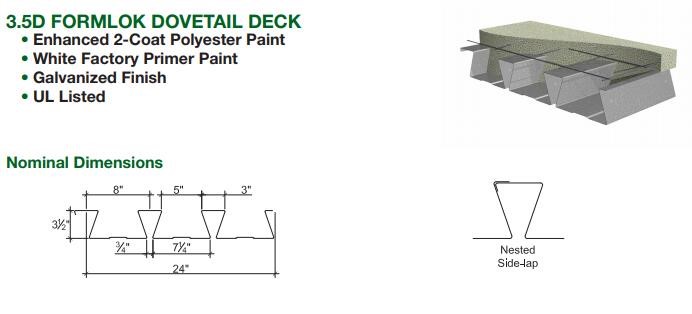

The following is another size formlok drawing profile for your reference:
The following type drawing profile is designed to be used as roofing deck:
Based on those Dovetail Deck drawing profiles, we have specially designed the Dovetail Deck rolling forming machine for your reference:
The following list shows how many elements is composed of Dovetail Deck rolling forming machine |
|||
| No | Name | Unit | quantity |
| 1 | 7 tons manual decoiler | Set | 1 |
| 2 | Decking roll forming machine with back blade | Set | 1 |
| 3 | PLC control cabinet | Set | 1 |
| 4 | Hydraulic station | Set | 1 |
| 5 | Run-out table | Set | 1 |
| 6 | Spare parts | Set | 1 |
The following are more details of Dovetail Deck rolling forming machine for your reference:
Main rolling forming machine:
Two Motors drive: 15 KW * 2
Raw material thickess:0.8-1.5mm
Feeding width:1220mm
Final width:1020m
Raw material: GI
Rollers quantity:38
Roller material: Gcr15 with tempering
Shaft material: Solid 45# steel with tempering
Shaft diameter: 90mm
Machine frame: 350# H steel welded
Transmission : By chain
Voltage:As request
Blade material: Cr12 with tempering
Shear power:Hydraulic method
Speed:15m/min
Roller fixer:20mm Middle plate
Type of cutting power: Hydraulic
Elements:Two hydraulic jacks for fast shearing speed
Frame:Pillar pole type to make sure working steady
Cutting blade material: Gcr12, quenching at 58 to 62 degree to make sure hardness and long time to use.
Cutting tolerance:±1mm
Cutter blade more pair: We will give one more as spare part
Cutter quantity 2 set
Working pressure:20 MPA
Now let us check the profile overlapping effect:
When do the overlapping, two of profiles could be locked tightly for installation, you can save lots of time.
