Stable running 1.5-3 mm galvanized steel C purlin rolling making machine - ZTRFM
C purlin is widely used in purlin and metal steel structure building and wall beam.
Also can be assembled into the lightweight roof truss,bracket and other architectural compmns, beams.
Product Description
1.5-3 mm C purlin rolling making machine working process:

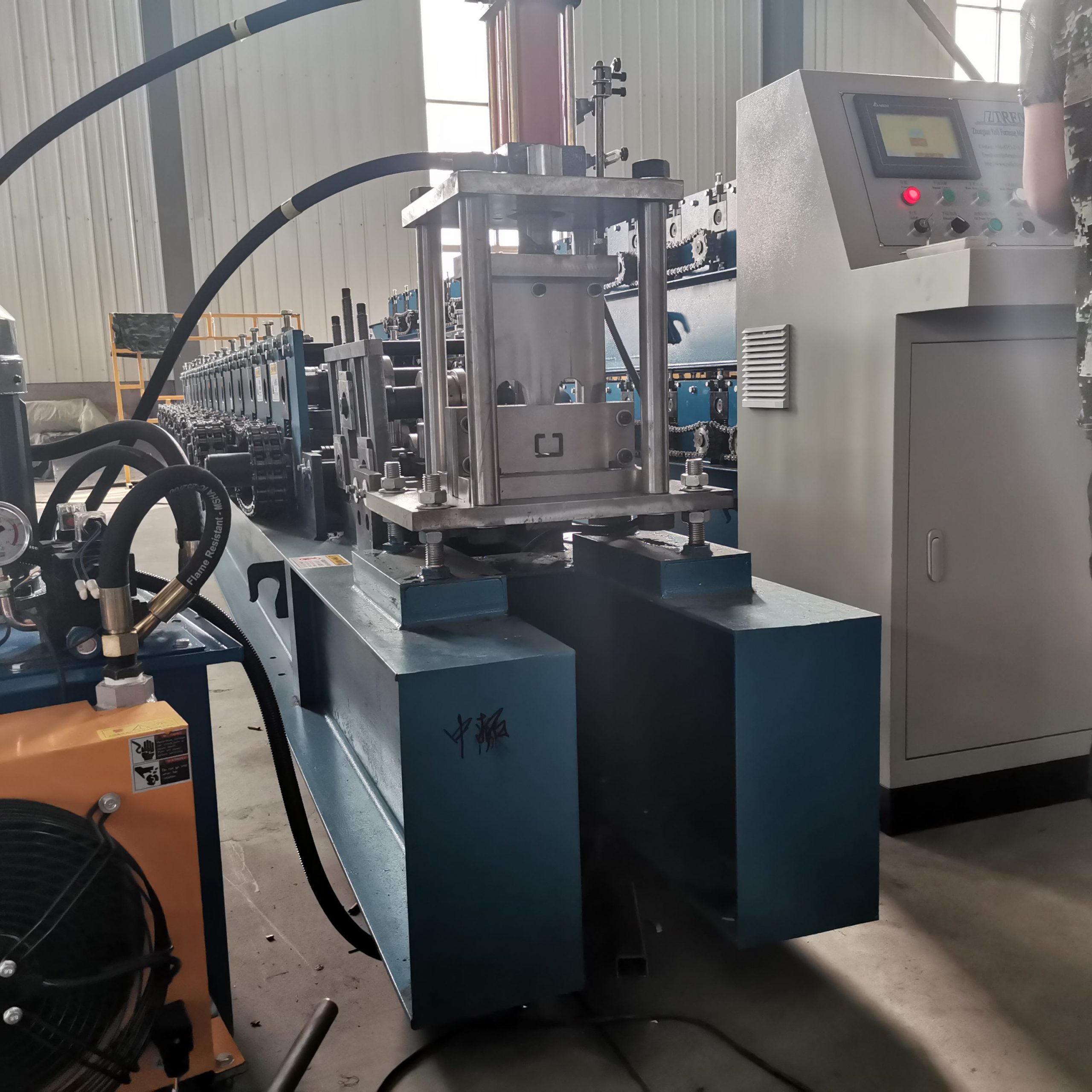

Uncoiler→Feeding and leveling→Roll forming→Hydraulic cutting→ Products receiving
| Item | Parameters |

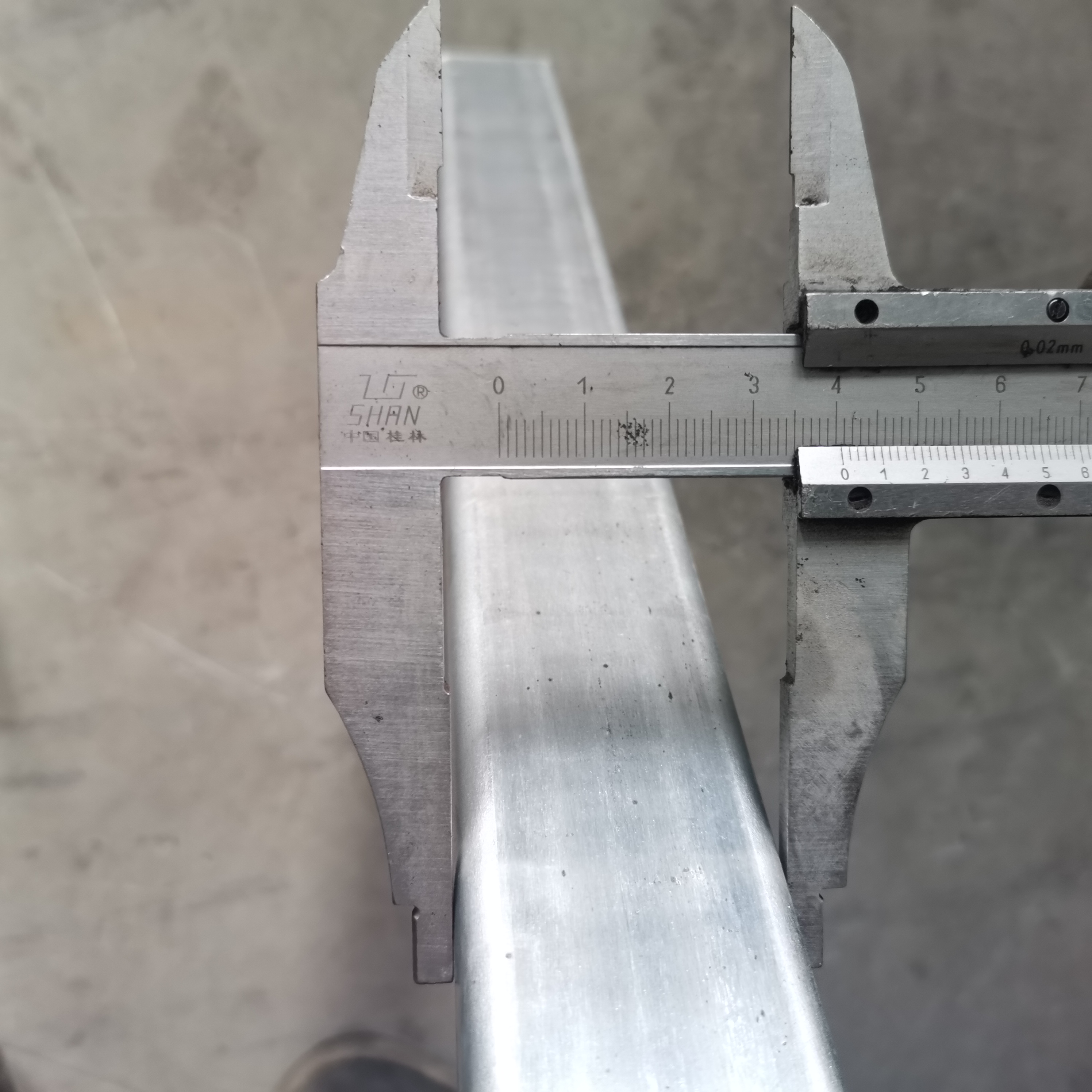

| Size of C purlin |
30*40 mm
|

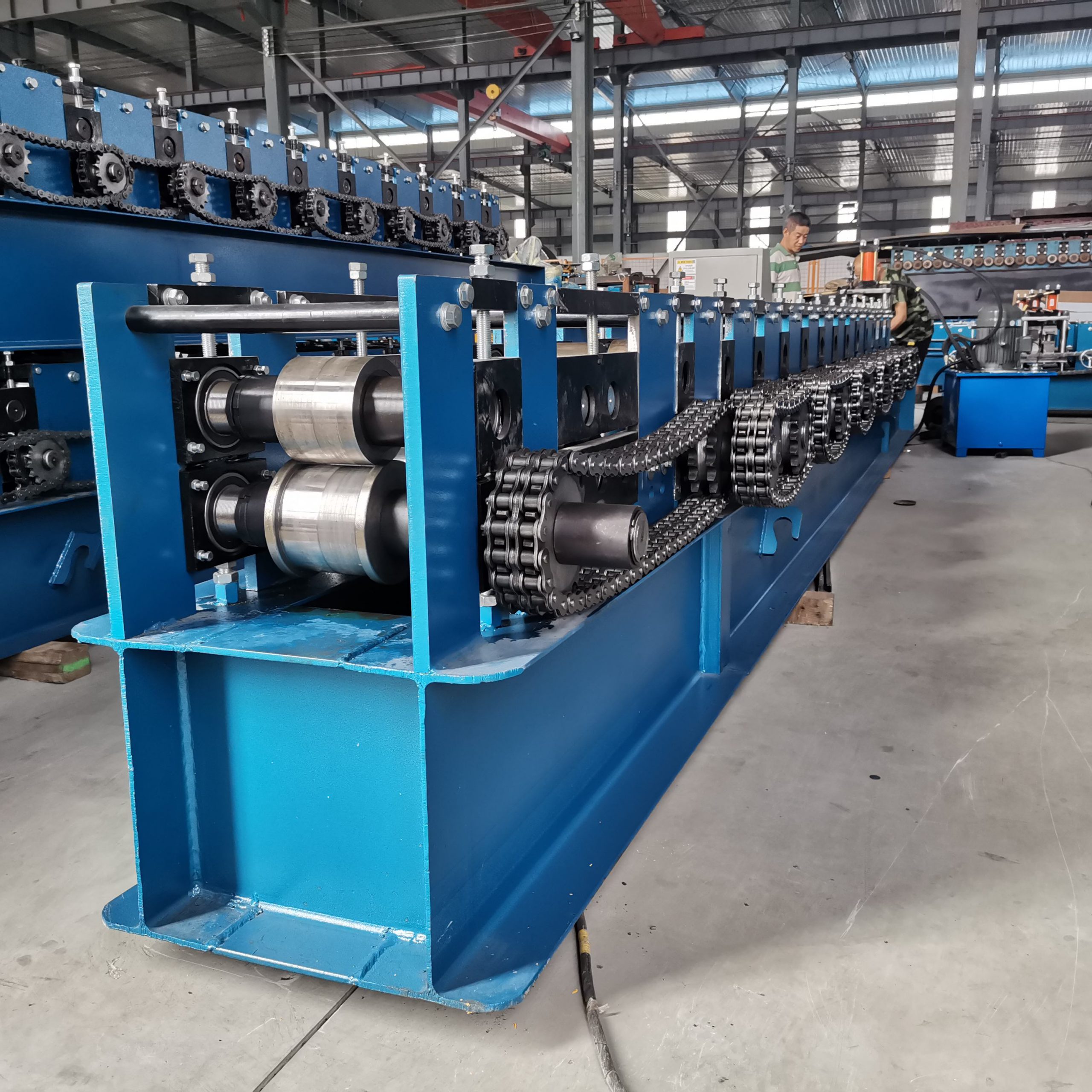

| Roller stations | 15 roller stations |
| Thickness | 1.5-3 mm |
| Shaft diameter | 75 mm |
| Roller material | GCr 12 |
| PLC brand | DELTA |
| PLC screen | Touch screen |
| Frequency brand | DELTA |
| Main motor power | 15 KW |
| Hydraulic motor power | 5.5 KW |
| Middle plate thickness | 20 mm |
| Drive type | Double chains drive |
| Cutting type | Cr 12 |
