Sigma Purlins M purline rolling forming machine - ZTRFM

Purlin roll forming machine is the most popular and has an extensive use in the construction work. Sigma Purlins M purline profile, we can design according to the size range, thickness range and give the different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): In the market, the most popular is C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes
C/U/Z/M section-automatically change from C to Z, change time: few seconds. But this design, the cost will be a little higher. Here I will share a more economic design which only can produce M purline, by this way we can save the cost:

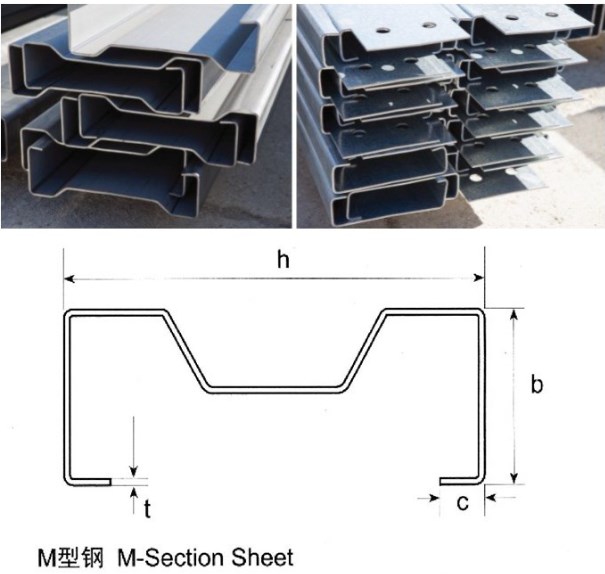

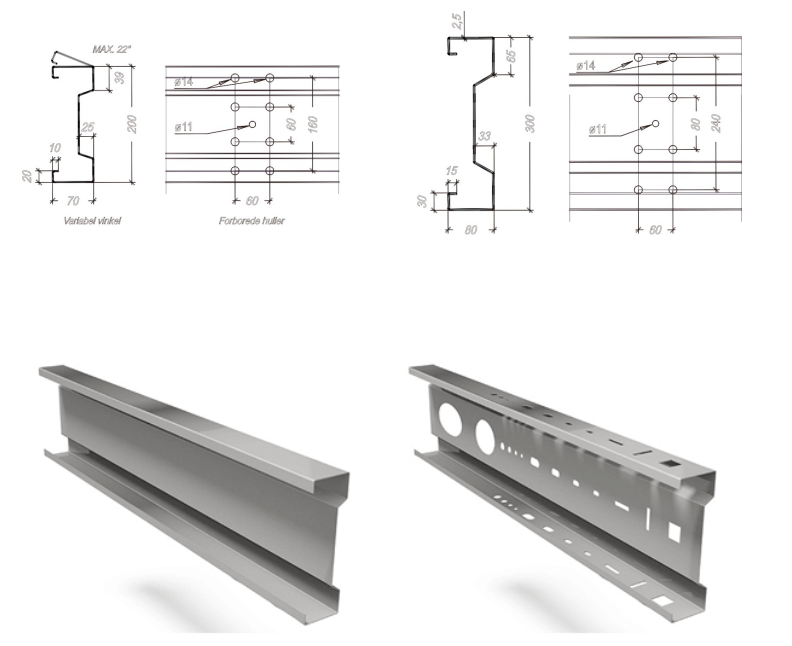

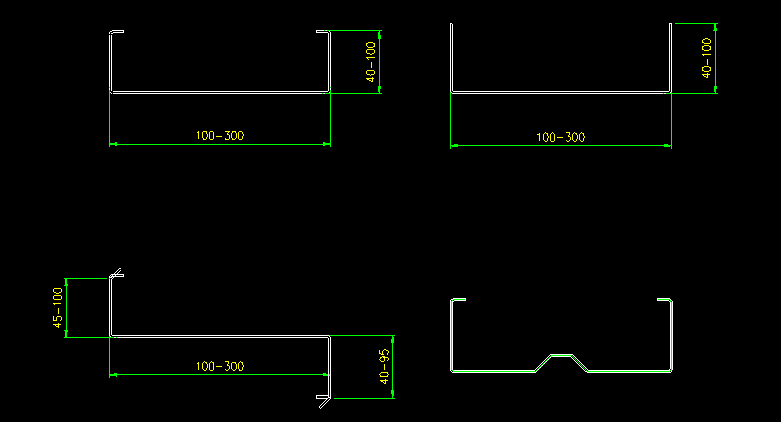

Sigma Purlins M purline drawing profile for your reference:

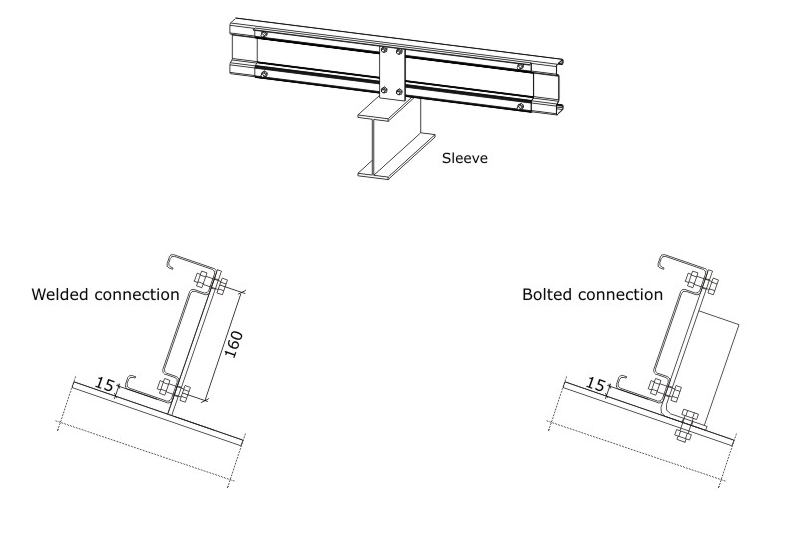

Use sleeves to shorter purline or assemble 2-span purline staggered

Keep a space of approx. 15 mm between the truss and the purlin

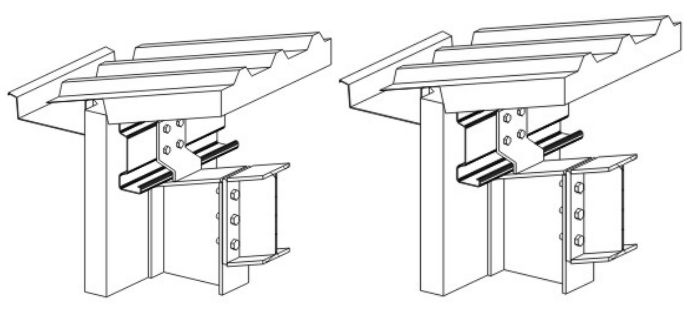

Eaves beams are supplied with an angled top flange, so only 1 profile is needed where roof and wall meet



Options of CUM purline fully automatic type, we will share in next article. For more information, please contact us at any time.

  1. Q: What kinds of experience do you have in producing C/Z purlin roll forming machine?

A: We have exported C/Z purlin roll forming machine to to India, Serbia, UK, Peru, Argentina, Chile, Hondulas, Bolivia, Egypt, Poland, Russia, Spain, Romania etc. It’s the most popular roll forming machine of all.

In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling roll forming machine, wall angle roll formign machine, light gauge steel roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.

Simply the best steel frame machine for your project.

  1. Q: How many sizes can produce this machine?

A: This machine can produce C purlin, Z purlin, U purlin, Sigma purlin, and each section could produce many sizes, width range is 80-300mm, height range is 50-100mm, recommendable thickness range is 1.5-3mm. It’s your best and affordable choice for steel frame.

  1. Q: What is delivery time of purlin roll forming machine?

A: 60 days to 70 days depends on your drawing.

  1. Q: What is your machine speed?

A: Normally forming speed is around 20m/min (adjustable) with flying cutting for thickness 1.5mm. For 3mm, forming speed is lower, around 15m/min.

  1. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

  1. Q: What is your after-sales service system?

A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

Here is just one size for your reference, by manual adjustment, the production line can produce more sizes meanwhile the cutting blades also needed to be changed also.

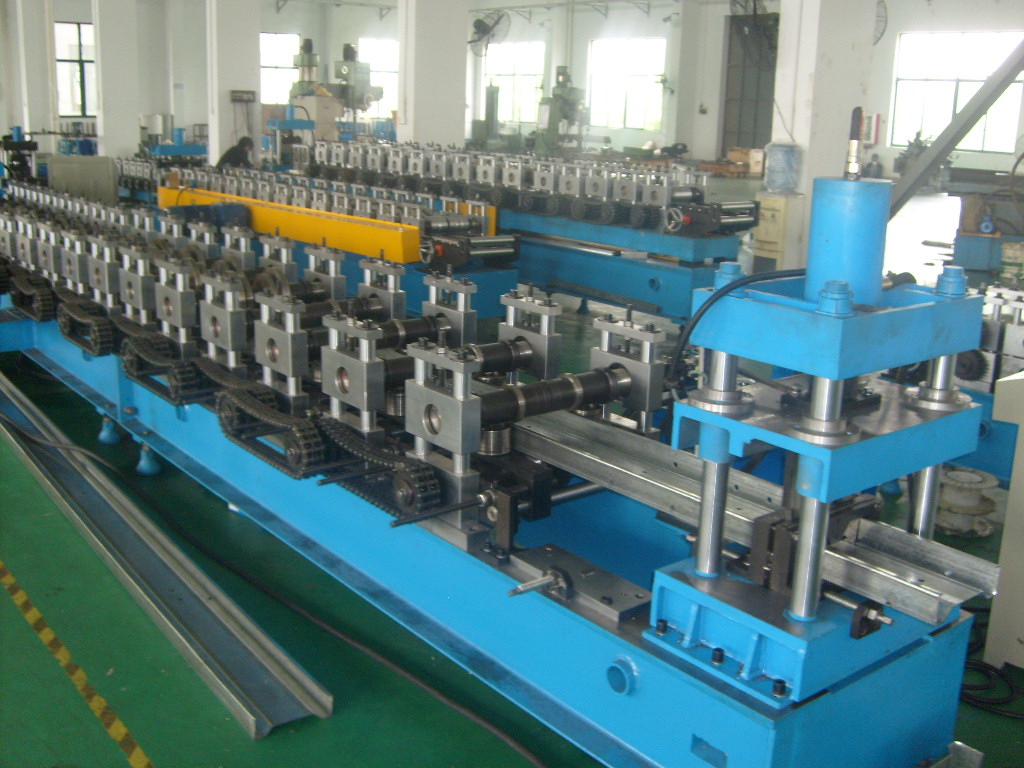

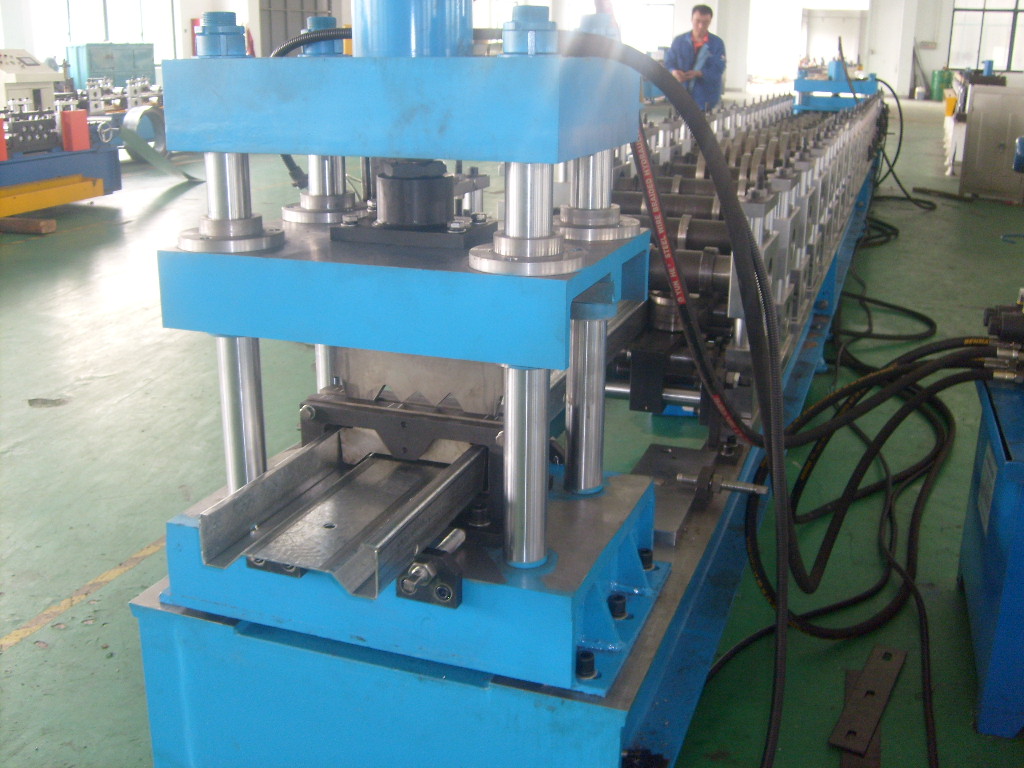

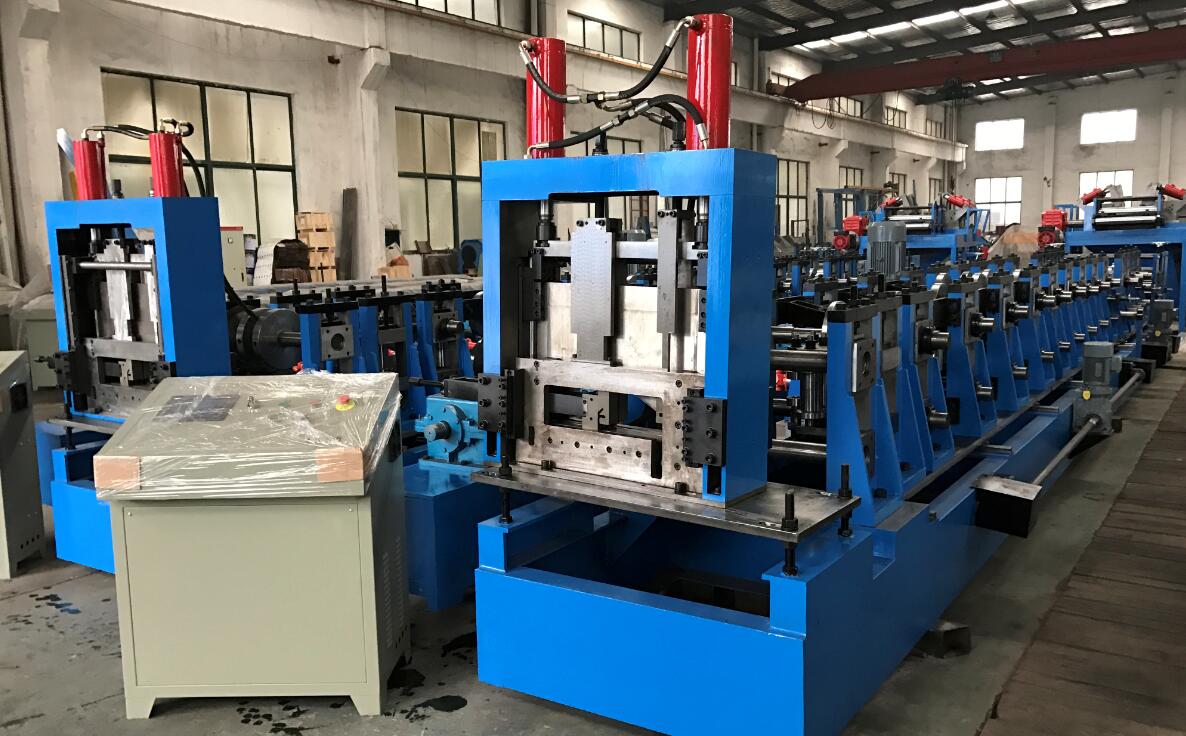

Sigma Purlins M purline rolling forming machine manual adjustment type for your reference:

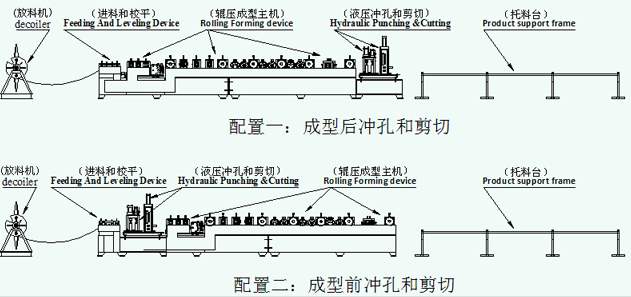

Sigma Purlins M purline rolling forming machine working flow:

Uncoiling—guiding—feeding&flatting—forming—punching&cutting—product receiving

Where to use the M purline:

Roof purlins:
