C Z Shape Purlin Forming Machine Full Automatic Change Size type - ZTRFM

Basic informaion of  c z shape purlin forming machine hot sale price  :

1.Zhongtuo  c z shape purlin forming machine hot sale price is made up of uncoiler , feeding part, main roll forming system ,cutting system and receive table.

2.The machine is stable,no noise,no shake.

3.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance free.

4.cutting machine is characterized by stable driving, easy operation.

5.hydraulic system use the hydraulic pump, long operating life,no noise.

Zhongtuo  c z shape purlin forming machine hot sale price  feature:

1.Take continuous production,there is no need to change the rollers in rough-forming section.

2. c z shape purlin forming machine hot sale price finished with good flatness bending pressure performance is good, automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation,

3.the product can be used as medium-sized industrial and civil buildings the main force structure, such as factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and wall flat load bearing support.

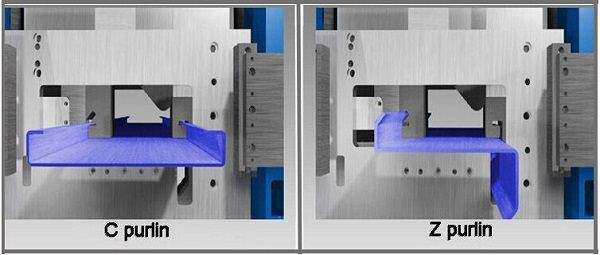

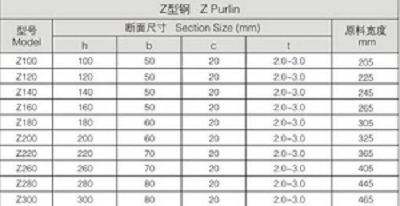

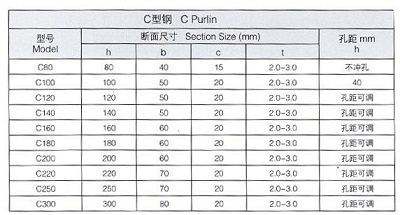

1.size of c z purlin

 1. Processing technique and deployment of   c z shape purlin forming machine hot sale price

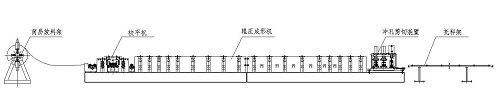

Flow chart : Decoiler– Roll Forming–PLC System—Hydraulic System –Pressing –Cutting —Output Table

2.Decoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity 5T
Uncoiling width 1000mm
Inner diameter: 450-550mm

 3.Components of line of   c z shape purlin forming machine hot sale price

No. Name Unit Qty
1 Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 punching set 1
6 Output Table set 1
7 Control System(PLC) set 1
8 hydraulic station set 1

4.Feeding

Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.

Material of axis 45#steel
Number 3 up,4 down
Diameter of axis 100mm
Forming round Material bearing steel (GR15), quenching 60-62 °C

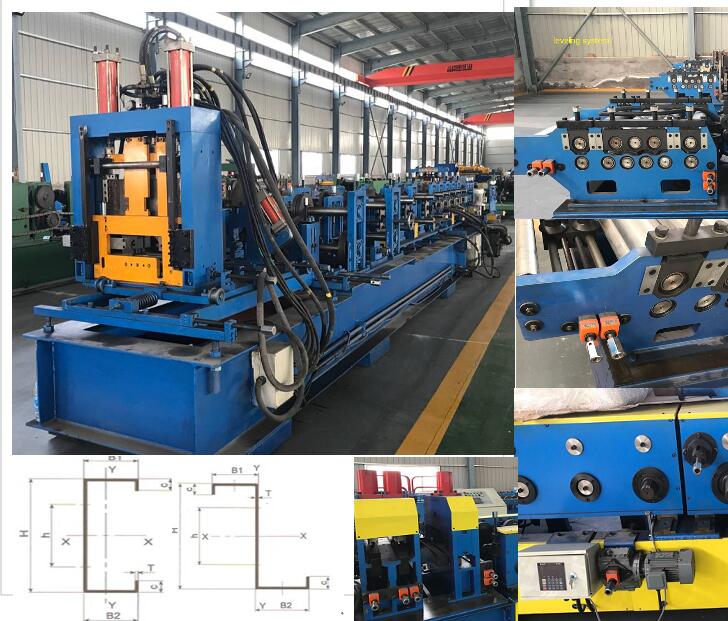

5.Roll forming machine of  c z shape purlin forming machine hot sale price

Advantage:Automatic length cutting, automatic punching, high degree of automation,

quick and easy installation

Length of the main part 6800mm*800mm*1200mm
Weight of main part 7.2 tons
Voltage 380V  50HZ 3Phase
Frame 400 H steel
Drive mode differential gear
Main axle material GR15
Material of shafts 45# steel
Diameter of shafts φ80mm
Number of rollers 12 rollers
Main power 11kw(cycloidal planetary gear speed reducer)
Forming speed 8m-10m/min
Adjustment method Half seams type Looper

 6.cutting part

7.Punching part of   c z shape purlin forming machine hot sale price

Features: punching is added to the flying saw cutting part, by the hydraulic control, mainly in the red c-shaped steel in the hole based, can be set up according to their needs, can be washed from time to punch, simple to use, the durability

Power 4kw (double valve)
Cylinder 2
Material: Cr12 quenching
Quantity 2

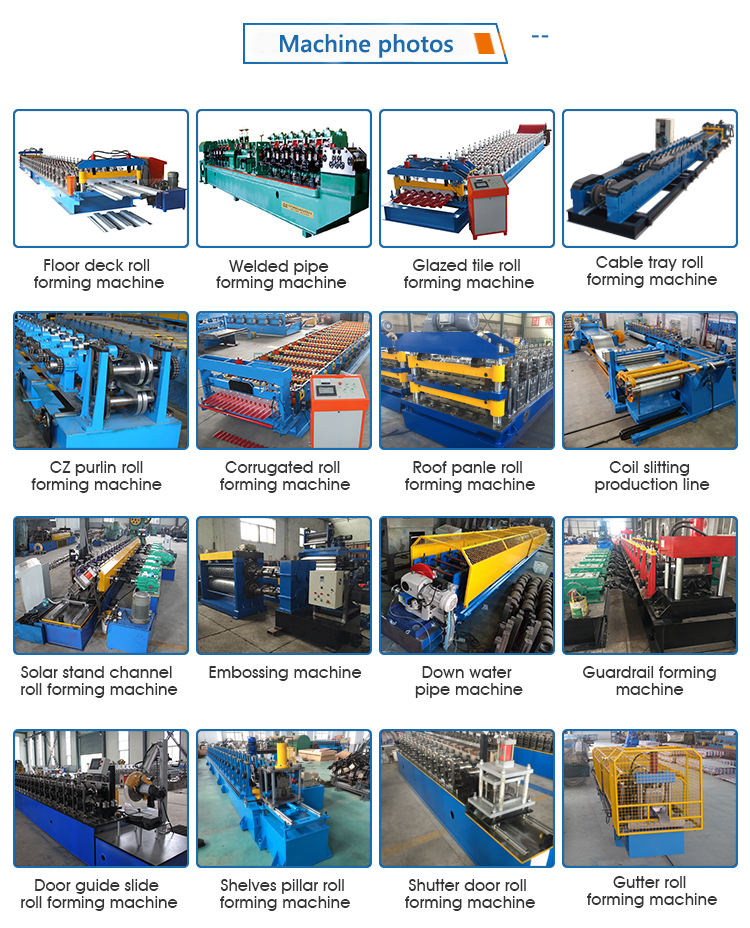

Machine photos
